Laminating Equipment

ReadyLam Laminating Film

● Metallic surface appearance

● Increase R-values after laminated with EPS
● High-quality printing as customer requirements

● Excellent adhesion strength

● Excellent resistance to tear & elongation

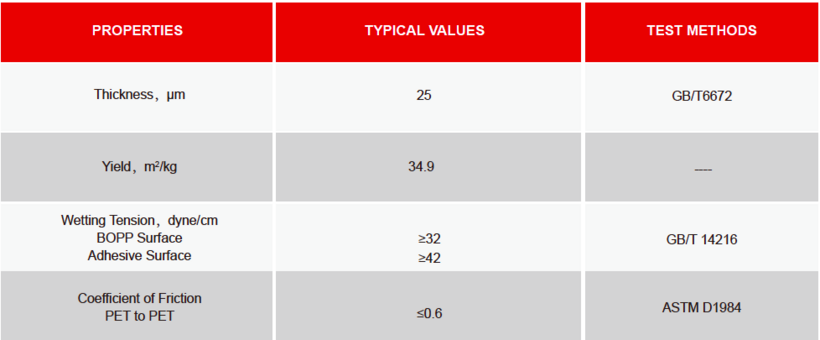

Technical Data

Premium Construction PET Metalized Printed

​KDX America© 2021. All Rights Reserved.

Laminating Equipment : thermal laminating machine

Temperature : 95-120℃

Pressure : 8-18MPa

Speed : 10-70m/min

Adjust the processing parameter according to the production job requirement.

Application Technology

The Metallic Printed BOPET Construction Film is specifically designed as a metallic reflective facer for laminating with expanded polystyrene (EPS) foam board. And the printed patterns can be designed according to customer requirements, such as displaying the EPS brand and/or product logo. The lamination film improves physical strength and provides resistance to mechanical stresses such as bending and breaking, prevents or reduces material loss in construction progress. After laminated with EPS foam, it could improve thermal insulation effect, as well as good barrier effect to water vapor.

Window Film

Laminating Film
