Laminating Equipment : thermal laminating machine

Temperature : <100℃

Pressure : >3MPa

Speed : ≥10m/min

Adjust the processing parameter according to the production job requirement.

Application Technology


ReadyLam Laminating Film

Matte/Gloss Eco Thermal Film

Laminating Equipment

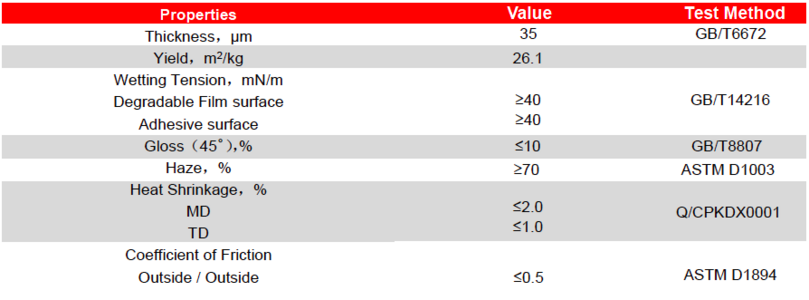

Technical Data(Matte)

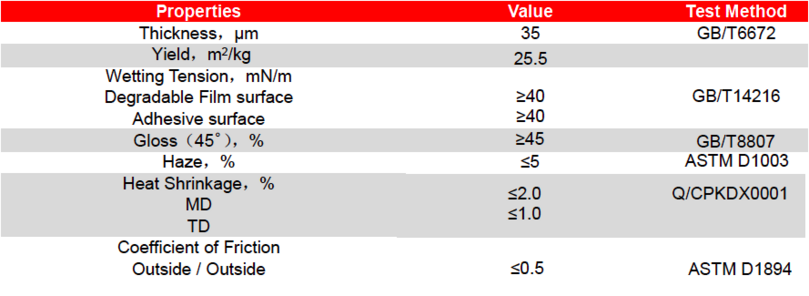

Technical Data(Gloss)

● Produces a brilliant sheen

● Consistent corona treatment
● Easily foil foil-blocked, glued and printed without with out pre-treatment

● ​Low level of static

● Excellent resistance to tear & elongation

The KDX Eco Thermal film is composed of cellulose diacetate film and EVA. Cellulose, the primary raw material used in the Eco Thermal film is derived from wood, which is a naturally renewable resource. The Eco Thermal Film is usually laminated to the surface of printed paper or board. Despite its inherent biodegradability, the Eco Thermal Film is very stable and does not break down in normal end end-use conditions. The EVA adhesive layer is not biodegradable and compostable.

Window Film

Laminating Film
